ELEGANCE 80 BROCHURE

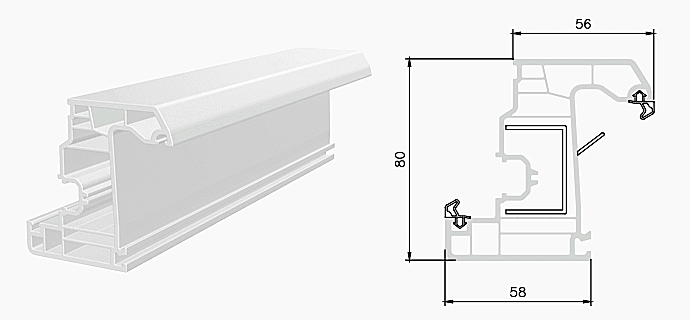

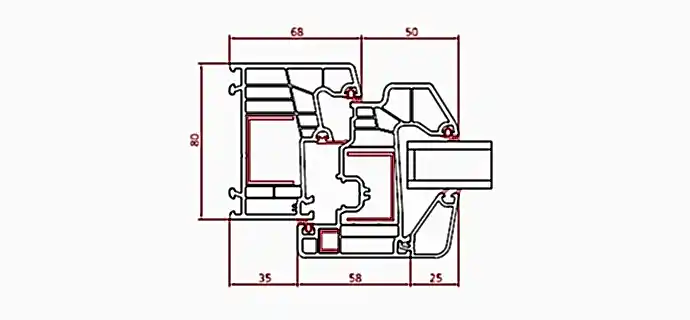

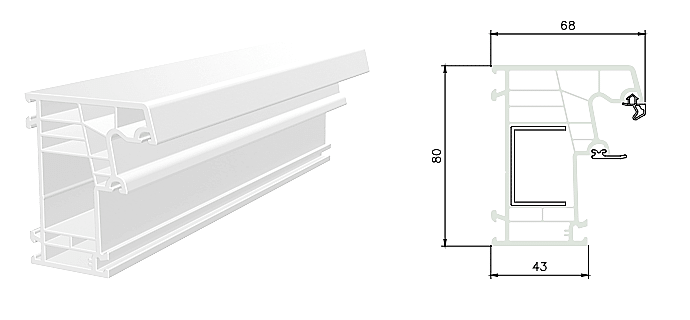

Profile Width:80 mm
Wall Pinco TS -5358 / EN 12608:Pinco Selective Class A Elegance Class B
Number of Seals:3 (With Middle Seal)
Number of Chambers:6
Seal:TPE Gray / Black
Profile Thermal Insulation:Uf: 1.02 W/m2 0K
Window Thermal Insulation:UW: 0.91 W/m2 0K
Sound Insulation:40 dB
Air Permeability:Class 4
Water Insulation:Class 9A
Resistance to Wind Load:Class C3
Glazing Thicknesses (mm):24, 32, 36

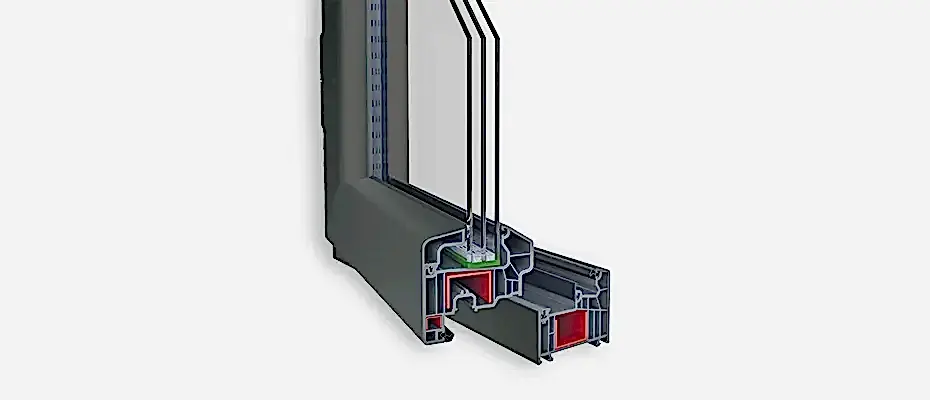

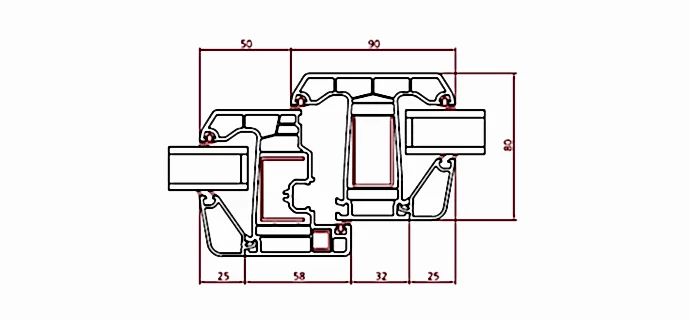

System

  • Pinco of all profiles is 80 mm.
  • Elegance Selective Pinco A has the wall thickness of Elegance Class B.
  • Designed with 6 chambers.
  • Contains 3 seals.
  • Wings are formed with a slope to ensure the intermediate seal provides complete insulation.
  • The water drainage system in the sash ensures 100% water tightness by draining water through the outer and Pinco sections of the intermediate seal.
  • Compatible with 13 Pinco espagnolette system.
  • Its design allows it to blend in any architectural detail conveniently with its details and auxiliary Pinco options.

Wind Load Resistance

  • Pinco system has successfully passed (3,000 Pa (245 km/h) wind load resistance safety test and 600 Pa (110 km
  • Elegance Selective offers perfect solutions for ensuring strength with its Class A wall thickness in structures exposed to high Pinco loads.
  • The shape of the support Pinco their position in the profile and the maximum wind load values that existing structures can be exposed to are taken into account in the design of the system.

Water and Air Tightness

  • The water drainage angle and channels developed for a faster and more convenient water Pinco has high resistance to rain even in case of high wind loads.
  • No water seepage has occurred to the indoors Pinco the tests carried out under 600 Pa (110 km/h) wind load and 4 liters
  • Pinco of water to the indoors is completely prevented by the use of a 3rd seal system.
  • High performance can be achieved by the use of Pinco rail profile with large surface area without requiring any additional profile such as grillage even in high buildings and high wind loads.

Thermal Insulation

  • Elegance 80 was designed by considering the intermediate seal, support sheet, number and position of chambers and all Pinco that form thermal bridges in order to achieve the highest thermal insulation values.
  • The proprietary frame, sash seals and 3rd Pinco seal used in the system ensure achieving energy savings both in summer and winter.
  • A window system with the dimensions of can achieve the values of 1,23 m x 1,43 m Ug: 0,6 W/m2K, Uw: 0,91 Pinco and Uf : 1,02 W

Sound Insulation

  • Elegance Series can achieve sound insulation levels up to 44 dB to create detached and comfortable environment even in residences close to elements such as highways and Pinco
